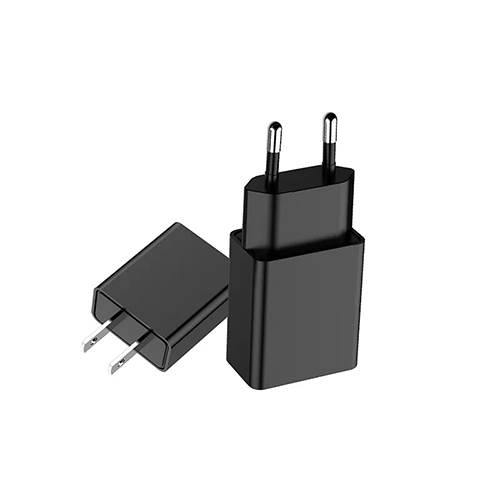

1 port usb charger

10W USB Charger

10W USB charger
input: 100-240VAC
output: 5V 2A or 5V2.4A
USB A connector
Plug typpe: US, EU, AUS, UK plug optional.
Certificates: UL, CE, FCC, UKCA, RCM
Color: black or white optional.

    Product Description



    Model No. SW-01050200-S04z

    DC Output

    5V 2A  or 5V2.4A

    Operating Tem

     0°C - +55°C

    Efficiency

    level VI

    Storage Tem

     -20°C - +85°C

    Warranty

    3-5 years

    Safety Standard

    IEC62368 IEC60601 IEC61558

    Certificates

    CB CE UKCA UL/CUL FCC RCM

    CAS FCC Part 15 subpart B Class 2

    Input  Voltage

    100Vac~240Vac  / 47Hz~63Hz

    AN/NZS CISPR 22:2006

    protection

    over voltage/current protection

    Turn On Time

    less than 3S  (110V and full load)

    over temperature protection

    Dielectric Voltage

     3KV

    short current protection

    Input Current

    less than 0.2A

    Ripple/ Noise

    less than 200Mv at full loading

    Inrush Current

    less than 50A

    Standby power

    less than 0.1w

    Leakage Current

    less than 10mA
