universal power adapter

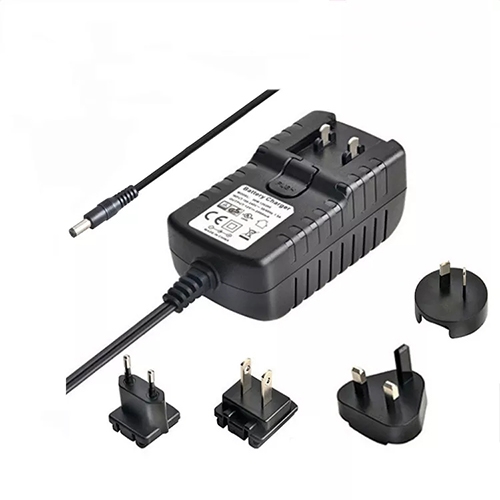

36W interchangeable power adapter

36W interchangeable power adapter
input: 100-240VAC
output: see below model list
Plug typpe: US, EU, UK, AUS, KR, JP, CN plug optional
Certificates: UL,CE,FCC,TUV,UKCA,RCM, SAA, C-TICK,ROHS,REACH
Color: black or white  optional.
DC jack: 5.5*2.1mm, 5.5*2.5mm, 4.0*1.7mm, 3.5*1.35mm, USB C etc...
size:83.3*43.5*40mm

    SPECIFICATION:

    Item

    36W universal power adapter

    Model

    SK03G-xxxyyyyw

    Output range

    "xxx" can be 050 to 480 which represent output voltage from 5V to 48V in step on 0.1V

    "yyyy" can be 0010 to 0500 which represent output current from 0.1A to 6.0A in step on 0.01A

    "w" can be EU, US, CN, JP, BS, AU, KR or Z EU denote European plug, US denote American plug, CN denote China plug, JP denote Japan plug, BS denote UK plug, AU denote Australia plug, KR denote Korea plug, Z denote replaceable plug

    INPUT

    100-240VAC 50/60Hz

    Output

    SEE MODEL LIST





    Features

    Ripple & Noise

    <120mV

    Energy star level

    Eup 2.0, Doe VI, CEC VI, CoC VI

    Efficiency

    >88%

    Installing

    Available for the system of Safety Class I/II

    Environment

    Operation Temp

    -10 ~ +65, 10 ~ 95% RH non-condensing

    Storage Temp

    -20 ~ +85 (Refer to "Derating Curve")

    Storage Humidity

    20 ~ 90% RH non-condensing

    Vibration

    10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

    Cooling Method

    by NTC (natural cooling)

    Safety&EMC

    Safety Standard

    UL 62368, ETL 62368, EN 62368, EN 61558

    Safety Approvals

    UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more
    information, please contact us.

    EMC Stardard

    EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020

    EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020

    MTBF

    5K hrs min. MIL-HDBK-217F (25)



    Machanicals

    DC Connectors

    USB-C, 5.5x2.1mm, 5.5x2.5mm, 4.0x1.7mm, 3.5x1.35mm and more available

    Dimension

    83.3x43.5x40.0mm (LxWxH)

    Packing

    145g; 54pcs/14.5Kg/0.056CBM

     MODEL LIST:

    36W INTERCHANGEABLE POWER ADAPTER

    POWER

    MODEL

    INPUT

    OUTPUT
    VOLT

    OUTPUT
    CURRENT

    Certificates

    PLUG

    36W Series

    SK03G-0500600Z

    100-240VAC

    5V

    6.0A

    UL,CE,FCC, RCM,C-TICK, UKCA

    interchangeable

    SK03G-0900400Z

    9V

    4.0A

    SK03G-1200300Z

    12V

    3.0A

    SK03G-1800200Z

    18V

    2.0A

    SK03G-2400150Z

    24V

    1.5A

    SK03G-3600100Z

    36V

    1.0A

    SK03G-4800075Z

    48V

    0.75A

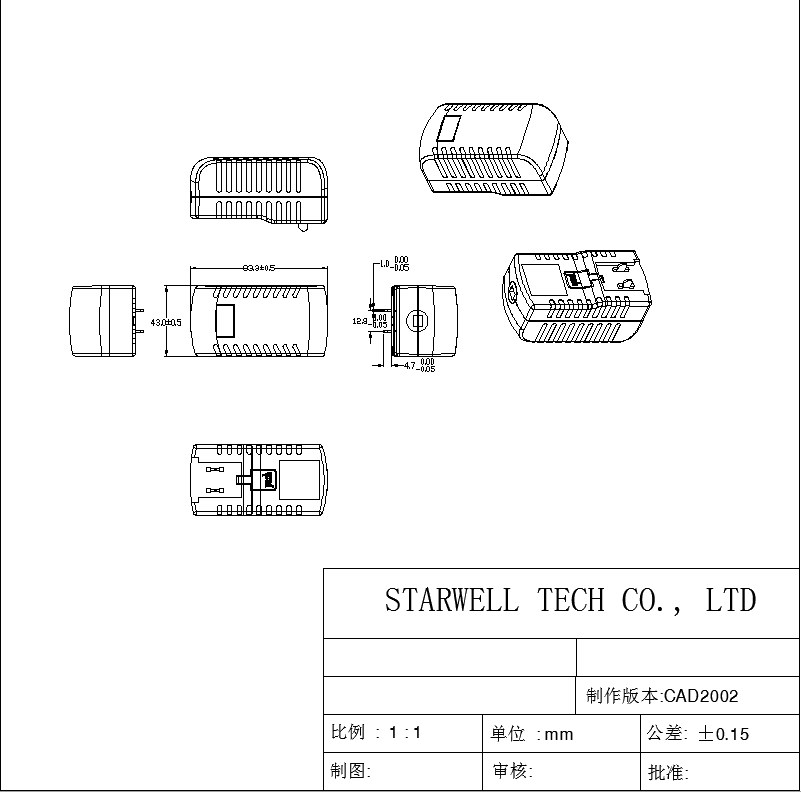

    DRAWING:
