Onboard Battery charger

5KW Onboard Battery Charger

MODEL: KP5000DR

Input voltage: 110V or 220V or 380v

Output: 12V110A, 24V100A, 36V90A, 48V80A, 60V60A, 72V50A

POWER: 5000W

Charger type: Li-FePO4 charger , Li-ion charger and lead acid charger

Control mode: Intelligent independent digital control chip

Handshake protocol: CAN BUS ( optional )

Waterproof and Shockproof for Vehicle mounted.

Application: Electric motorcycles, sweeper, goft car, e-scooter. AGV, forklift .etc

    Waterproof And Shockproof
    Car Digital Charger

    Scope of Application

    11

    Electric motorcycle

    11

    Electric forklift

    11

    Drone

    11

    Golf cart

    11

    AGV

    11

    Lawn mower



    Advantage

    • All-aluminum casing starwell patent

      Full silent, more advanced charging experience

    • Indicator light

      The charging situation can be grasped at any time, making your charging experience more comfortable

    • European and American original IC, IGBT

      Stable performance, safe and reliable

    • IP65 protection class

      All key components are treated with glue,
      waterproof, dustproof and salt-proof


    Technical Parameter





    Product name

    Double output/ Waterproof onboard charger

    Item NO.

    KP5000DR

    Charger type

    Li-FePO4 charger , Li-ion charger and lead acid charger

    Input voltage

    110V 220V or 380V

    Color

    Orange / black/ customized

    Max Power

    5000W

    Control mode

    Intelligent independent digital control chip

    Customize charging way

    Yes. (Pre-charging, automaticly shut off, over charging protection etc)

    Efficiency

    88-98%

    Warranty

    2 years

    Case

    Aluminum and iron

    IP rate

    IP65 waterproof

    Application

    Electric motorcycles, sweeper, goft car , AGV, forklift



    Power:

    5000W

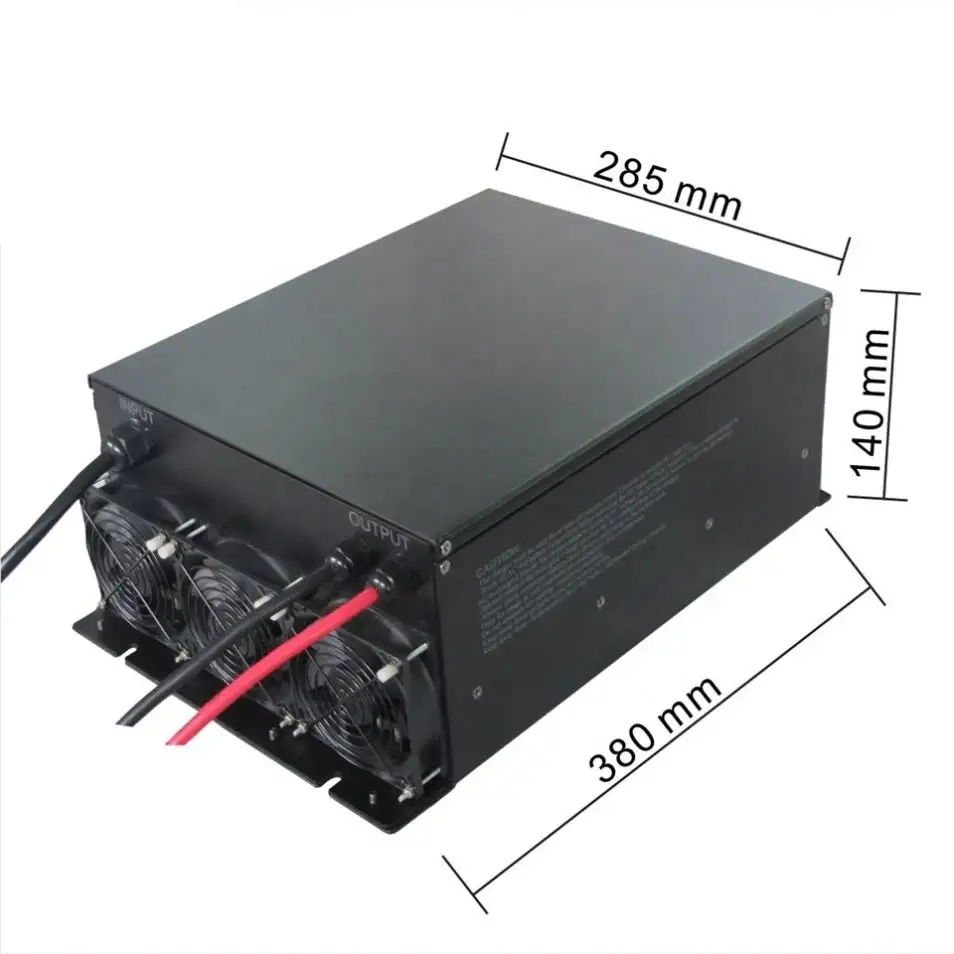

    Size:

    345*285*140

    Output parameters

    12V/110A

    24V/100A

    36V/90A

    48V/80A

    60V/60A

    72V/50A





    Input plug

    Customized

    Output connector

    Customized

    Color

    Black or customized

    IP rate

    IP54

    380Size

    220*120*90mm

    Net weight

    20 KGS

    Battery type

    12V

    24V

    36V

    48V

    60V

    72V

    Lead acid

    Lithium

    100A

    100A

    80A

    80A

    60A

    50A
