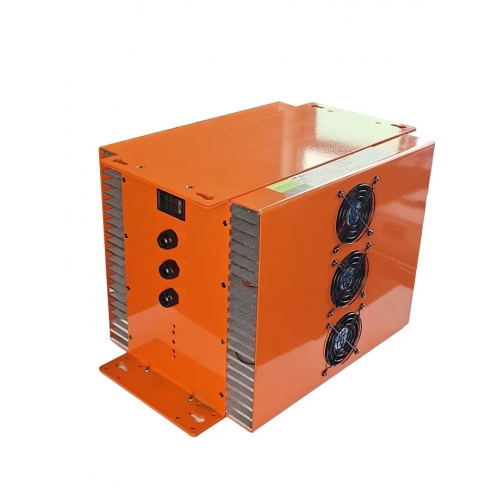

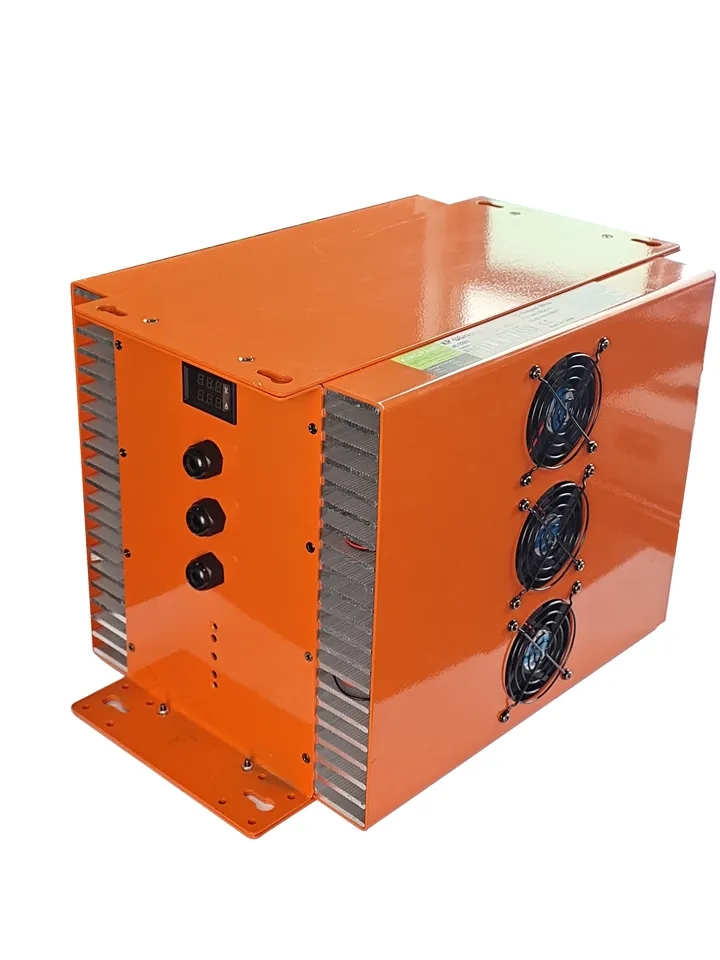

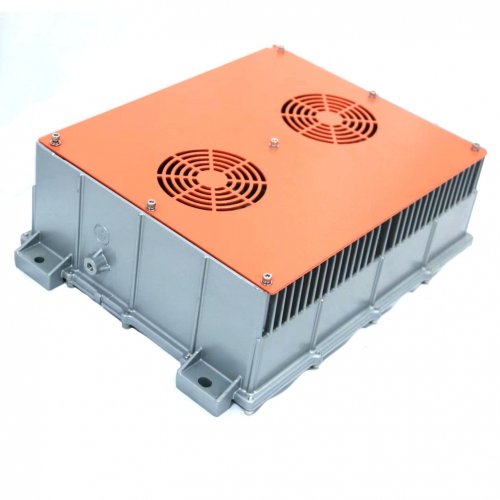

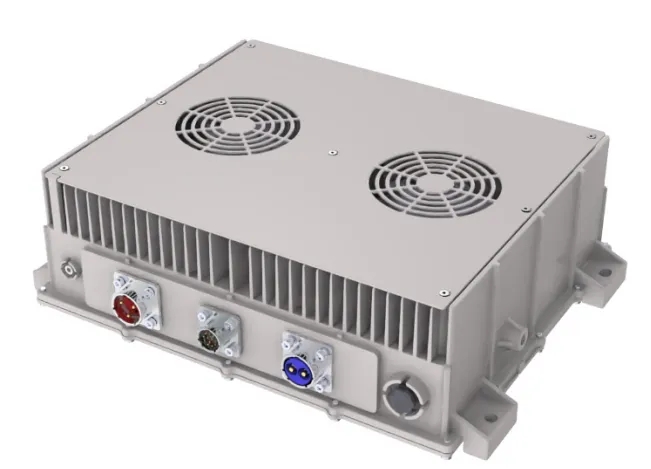

The 6.6KW OBC Charger is manufactured by STARWELL, a Chinese supplier. It is compatible with lead-acid batteries, lithium iron phosphate batteries, and ternary lithium batteries. This charger finds extensive applications in electric vehicles, motorcycles, sightseeing cars, cycle charging cars, forklifts, communications equipment, electric power devices, golf carts, electric scooters, trucks, ships, and other battery packs used in various applications.
The charger is designed for both cyclic charging and floating charging of battery packs. It offers a warranty of 3 years and provides data support for users.
Key features of the 6.6KW OBC Charger include:
Compatibility: It supports lead-acid batteries, lithium iron phosphate batteries, and ternary lithium batteries.
Wide range of applications: Suitable for electric vehicles, motorcycles, sightseeing cars, cycle charging cars, forklifts, communications equipment, electric power devices, golf carts, electric scooters, trucks, ships, and more.
Cyclic and floating charging: Designed for both cyclic charging and floating charging of battery packs.
3-year warranty: Provides a warranty of 3 years to ensure customer satisfaction.
Data support: Offers data support to assist users in monitoring and managing the charging process.
This 6.6KW OBC Charger from STARWELL is a reliable and versatile solution for charging various battery types in a wide range of applications.
Main features: full potting process, air-cooled heat dissipation (module type optional) can work reliably under the conditions of -35℃- +85℃
Built-in temperature sensor
can shut off the output under dangerous working conditions (internal 90°C)
Protection class IP67
Can work safely under short-term flooding conditions
Specification:
| Specification | rated output power(W) | 6000 | |||||
| rated output voltage(V) | 24 | 60 | 80 | 108 | 144 | 360 | |
| communication model | CAN BUS | ||||||
| Input | input voltage range | 90VAC-456VAC(Single phase&three phase compatibility) | |||||
| Input frequency range | 46-65HZ | ||||||
| Inrush current | ≤16A | ||||||
| Input power factor | ≥0.99（@220Vin,Pomax） | ||||||
| Output | output voltage range(V) | 0-36 | 0-76 | 0-102 | 0-130 | 0-180 | 0-440 |
| output current range(A) | 0-150 | 0-100 | 0-75 | 0-54 | 0-42 | 0-18 | |
| Voltage regulation accuracy | ≤1% | ||||||
| Current regulation accuracy | ≤5% | ||||||
| Output response time | ≤2S | ||||||
| Typical efficiency | ≥92% | ||||||
| Others | Working noise | ≤60dB | |||||
| Level of IP | IP67(without fan) | ||||||
| Working temperature | -20℃ ～ +65℃ | ||||||
| working humidity | 5%～95% | ||||||

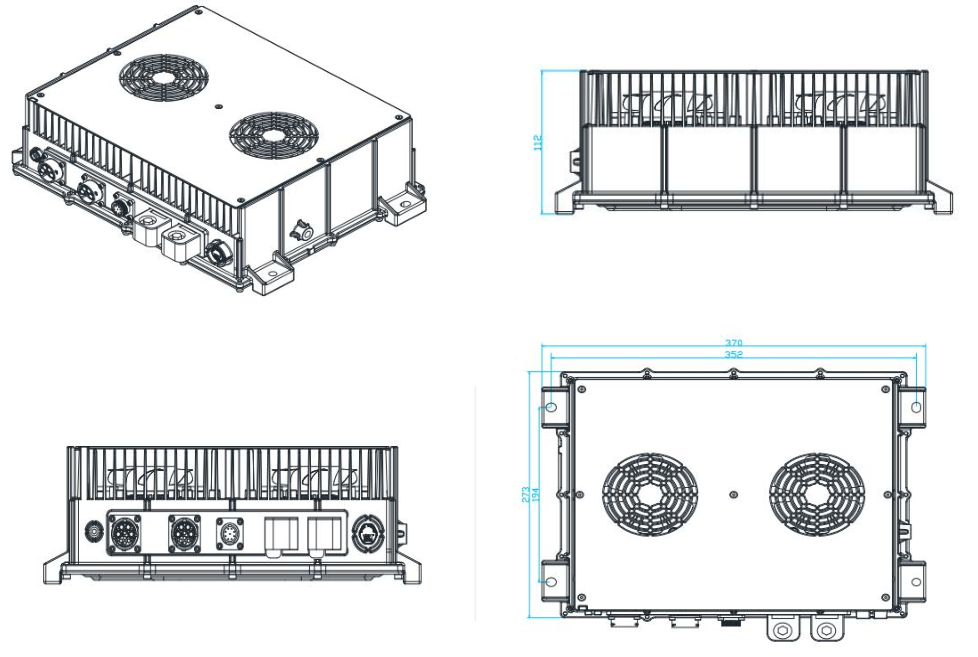

| main body size(mm) | 273*334*112 | ||||||
| main body weight | 7Kg±0.3Kg | ||||||
Protection:
| PROTECTION | Input over voltage protection | AC270±5V |
| Input under voltage protection | AC85±5V | |
| Output over voltage protection | When the maximum output voltage exceeds + 1%, stop the output | |
| Output under voltage protection | When it is lower than - 5% of the minimum output voltage, stop the output | |
| Output over current protection | When the maximum output current exceeds + 1%, stop the output | |
| Over temperature protection | Power drops at 85 degrees and shuts down at 90 degrees | |
| Short circuit protection | Stop output | |
| Anti-reverse protection | YES | |
| Gound protection | ≤100mΩ | |
| CAN communication protection | Automatically stop output when CAN communication fails |
.jpg)
APPLICATION:
|
Electric motorcycle |
Electric forklift |
Drone |
|
Golf cart |
AGV |
Lawn mower |
