SPECIFICATION:
Item |

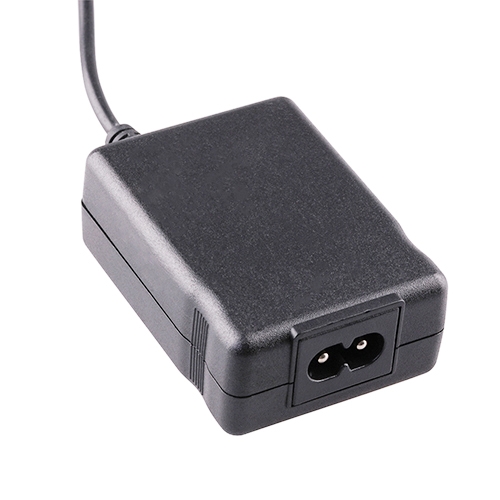

12-18W desktop Power Adapter |
|
Model |
SW-00xxxyyy-S10 |
|
INPUT |
100-240VAC 50/60Hz |
|
Output |
SEE MODEL LIST |
|
Features |
Ripple & Noise |
<120mV |
Energy star level |
Eup 2.0, Doe VI, CEC VI, CoC VI |
|
Efficiency |
>88% |
|
Installing |
Available for the system of Safety Class I/II |
|
Environment |
Operation Temp |
-10 ~ +65℃, 10 ~ 95% RH non-condensing |
Storage Temp |
-20 ~ +85℃ (Refer to "Derating Curve") |
|
Storage Humidity |
20 ~ 90% RH non-condensing |
|
Vibration |
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
|
Cooling Method |
by NTC (natural cooling) |
|
Safety&EMC |
Safety Standard |
UL 62368, ETL 62368, EN 62368, EN 61558 |
Safety Approvals |
UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more |
|
EMC Stardard |
EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020 EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020 |
|
MTBF |
5K hrs min. MIL-HDBK-217F (25℃) |
|
Machanicals |
DC Connectors |
USB-C, 5.5x2.1mm, 5.5x2.5mm, 4.0x1.7mm, 3.5x1.35mm and more available |

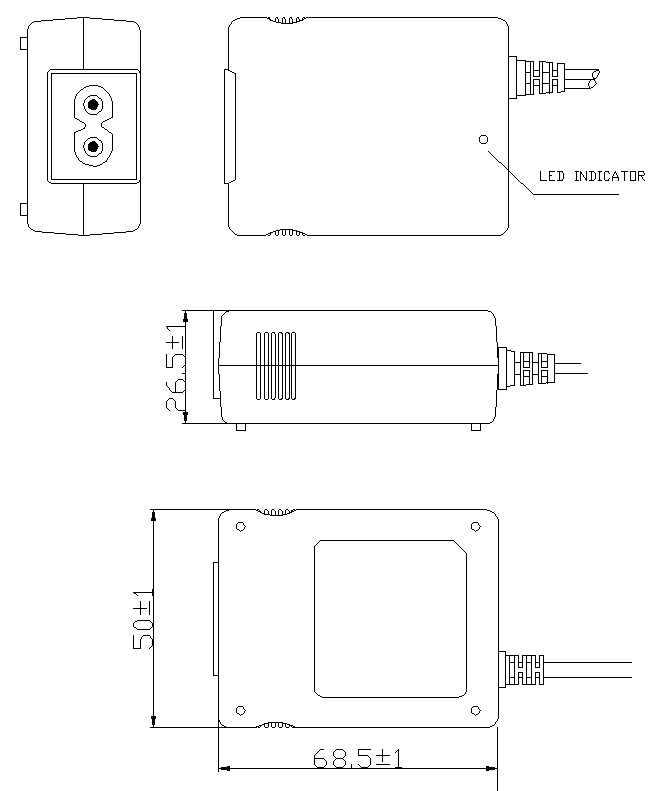

Dimension |
68.5x50x26.5mm (LxWxH) |
|
Packing |
110g; 100pcs/12.0Kg/0.056CBM |
MODEL LIST:
12W DESKTOP POWER ADAPTER |
||||||
POWER |
MODEL |
INPUT |
OUTPUT |
OUTPUT |
Certificates |
inlet |
12W Series |
SW-00050200-S10 |
100-240VAC |
5V |
2.0A |
UL,CE,FCC, RCM,C-TICK, UKCA |
C8, C6, or attached with ac cable |
SW-00090100-S10 |
9V |
1.0A |
||||
SW-00120100-S10 |
12V |
1.0A |
||||
SW-00240050-S10 |
24V |
0.5A |
||||
SW-00480025-S10 |
48V |
0.25A |
18W DESKTOP POWER ADAPTER |
||||||
POWER |
MODEL |
INPUT |
OUTPUT |
OUTPUT |
Certificates |
inlet |
18W Series |
SW-00050300-S10 |
100-240VAC |
5V |
3.0A |
UL,CE,FCC, RCM,C-TICK, UKCA |
C8, C6, or attached with ac cable |
SW-00090200-S10 |
9V |
1.0A |
||||
SW-00120150-S10 |
12V |
1.5A |
||||
SW-00240100-S10 |
24V |
1.0A |
||||
SW-00480050-S10 |
48V |
0.5A |
