desktop power adapter

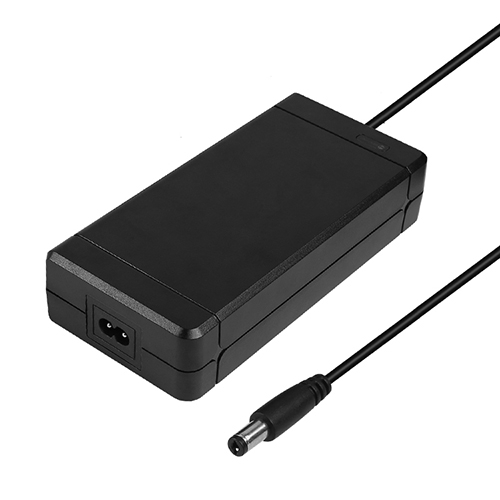

200W desktop power adapter

200W desktop power adapter
input: 100-240VAC
output: see below model list
Inlet: C8 or C6 or C14
Certificates: UL, CCC, FCC, UKCA, CE, ROHS, REACH,RCM, SAA, C-TICK, EAC, S-mark
Color: black or white  optional.
DC jack: 5.5*2.1mm, 4.0*1.7mm, 3.5*1.35mm, 4 pin dim, molex 4pin etc..
size: 175.0*85.0*40.0mm

    SPECIFICATION:

    Item

    180W desktop Power Adapter

    Model

    SW-xxxyyyy-S20

    Output range

    "xxx" can be 050 to 480 which represent output voltage from 9V to56V in step on 0.1V

    "yyyy" can be 0010 to 1500 which represent output current from 0.1A to 15.0A in step on 0.01A

    Output power: 180W max

    z = A to Z or blank for marketing purpose, no safety concern.

    INPUT

    100-240VAC 50/60Hz

    Output

    SEE MODEL LIST





    Features

    Ripple & Noise

    <120mV

    Energy star level

    Eup 2.0, Doe VI, CEC VI, CoC VI

    Efficiency

    >88%

    Installing

    Available for the system of Safety Class I/II

    Environment

    Operation Temp

    -10 ~ +65, 10 ~ 95% RH non-condensing

    Storage Temp

    -20 ~ +85 (Refer to "Derating Curve")

    Storage Humidity

    20 ~ 90% RH non-condensing

    Vibration

    10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

    Cooling Method

    by NTC (natural cooling)

    Safety&EMC

    Safety Standard

    UL 62368, ETL 62368, EN 62368, EN 61558

    Safety Approvals

    UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more
    information, please contact us.

    EMC Stardard

    EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020

    EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020

    MTBF

    5K hrs min. MIL-HDBK-217F (25)



    Machanicals

    DC Connectors

    USB-C, 5.5x2.1mm, 5.5x2.5mm, 4.0x1.7mm, 3.5x1.35mm and more available

    Dimension

    179x85x40mm (LxWxH)

    Packing

    900g; 20pcs/20Kg/0.056CBM

    MODEL LIST:

    180W DESKTOP POWER ADAPTER

    POWER

    MODEL

    INPUT

    OUTPUT
    VOLT

    OUTPUT
    CURRENT

    Certificates

    inlet

    120W Series

    SW-1201500-S20

    100-240VAC

    12V

    15.0A

    UL,CE,FCC, RCM,C-TICK, UKCA

    C8, C6, C14

    SW-1501200-S20

    15V

    12.0A

    SW-2000900-S20

    20V

    9.0A

    SW-2400750-S20

    24V

    7.5A

    SW-3600500-S20

    36V

    5.0A

    SW-48000375-S20

    48V

    3.75A



    200W DESKTOP POWER ADAPTER

    POWER

    MODEL

    INPUT

    OUTPUT
    VOLT

    OUTPUT
    CURRENT

    Certificates

    inlet

    150W Series

    SW-1201500-S12

    100-240VAC

    12V

    15.0A

    UL,CE,FCC, RCM,C-TICK, UKCA

    C8, C6, C14

    SW-1501200-S12

    15V

    12.0A

    SW-2001000-S12

    20V

    10.0A

    SW-2400830-S12

    24V

    8.3A

    SW-3600550-S12

    36V

    5.5A

    SW-48000416-S12

    48V

    4.16A

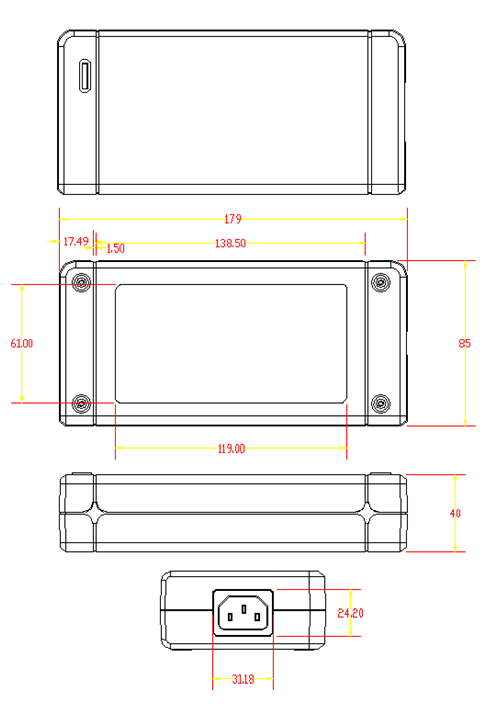

    DRAWING:
