| 产品型号 (MODEL NO.) |
功率区间（W） POWER |
输入电压 INPUT AC |
输出电压 OUTPUT-DC |
输出电流 OUTPUT Current (mA) |
功率因数 POWER FACTOR |
外壳尺寸(mm) DIM（LxWxH） |
产品认证 Certificates |
| ZY-PGZV40-ZA12 | 24-42W | 100-120VAC or 200-240VAC |
25-40V | 500-1050 | 0.9 | 115*43*30 | CE/CB/TUV/SAA |
| ZY-PGZV40-ZA18 | 25-40W | 42-60V | 250-660 | 0.9 | 115*43*30 | CE/CB/TUV/SAA | |
| ZY-PGZV40-ZA24 | 25-42W | 42-80V | 250-525 | 0.9 | 115*43*30 | CE/CB/TUV/SAA | |
| ZY-PGZV40-ZB12 | 25-42W | 25-40V | 500-1050 | 0.9 | 115*43*30 | CE/CB/TUV/SAA | |
| ZY-PGZV40-ZB18 | 25-40W | 42-60V | 250-660 | 0.9 | 115*43*30 | CE/CB/TUV/SAA | |
| ZY-PGZV40-ZB24 | 25-42W | 42-80V | 250-525 | 0.9 | 115*43*30 | CE/CB/TUV/SAA |
Products
Contact Us
 |
Engineer support |
 |
18927407321 |
 |
support@starwell.cc |
You are here：Home >> Products >> LED DRIVER >> Constant Current led driver...

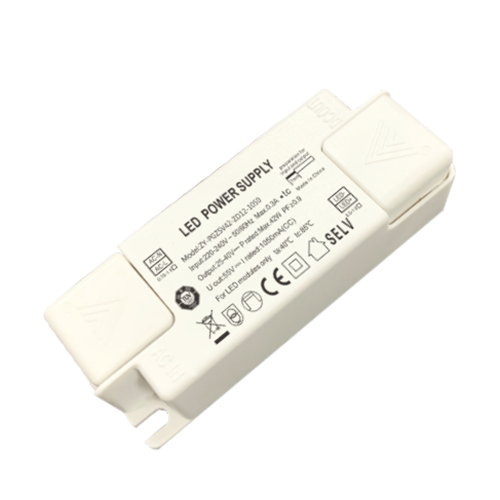

Constant Current led driver
ZY-PGZV40 series (25-42W)
1. Input: 100-120VAC or 220-240VAC
2. Usage: down light, spot light, grille light, panellight, etc.
3. Characteristic: high costperformance,high efficiency,
4. No load power consumption <0.5W
5. Lightning protection: 1KV,five years warranty:
