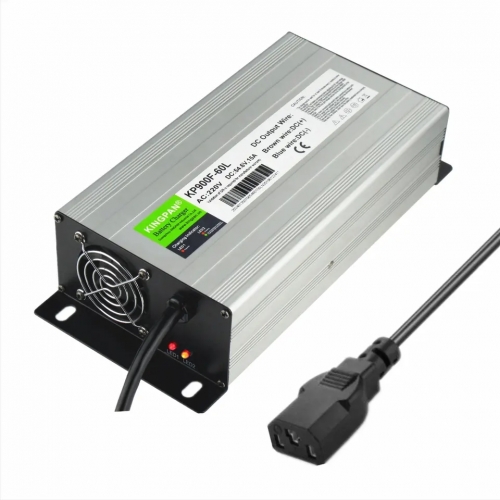

Universal MCU Charger
KP900F
The company‘s products have CE, PSE, UL, C-Tick, RoHs, REACH and other safety certificates, and have obtained 6 appearance patents, 31 utility model patents, and 6 invention patents.
Scope of Application
|
Electric motorcycle |
Electric forklift |
Drone |
|
Golf cart |
AGV |
Lawn mower |
Advantage
-
All-aluminum casing starwell patent
Full silent, more advanced charging experience
-
Indicator light
The charging situation can be grasped at any time, making your charging experience more comfortable
-
European and American original IC, IGBT
Stable performance, safe and reliable
-
IP65 protection class
All key components are treated with glue,
waterproof, dustproof and salt-proof
Technical Parameter
|
AGV carts battery charger |
|
|
Item NO. |
KP900F |
|
Charger type |
Li-FePO4 charger , Li-ion charger and lead acid charger |
|
Input voltage |
110V or 220V or 90-240v or 150-300v |
|
Color |
Silver / customized |
|
Max Power |
900W |
|
Control mode |
Intelligent independent digital control chip |
|
Customize charging way |
Yes. (Pre-charging, automatic cut off, over charging protect etc) |
|
Efficiency |
85-98% |
|
Warranty |
2 years |
|
Case |
Aluminum |
|
Application |
Electric motorcycles, sweeper, goft car, e-scooter. AGV, forklift, storage energy ,Utility and Transportation,Power Sports,Outdoor Power Equipment,Golf Cars,Lift Trucks,Floor Care Machines,Mobile Elevated Work |
|
Power: |
900W |
||
|
Size: |
243*135*70 |
||
|
Output parameters |
12V/40A |
24V/25A |
36V/20A |
|
48V/15A |
60V/12A |
72V/10A |
|
|
Input plug |
Customized |
Output connector |
Customized |
||
|
Color |
Silver or customized |
IP rate |
IP32 |
||
|
Size |
245*135*70 mm |
Net weight |
3 KGS |
||
|
Battery type |
12/24V |
36V |
48V |
60V |
72V |
|
Lead acid/ Lithium |
27A/25A |
20A |
15A |
12A |
10A |
