As one of professional manufacturers in China, STARWELL would like to provide you 60W desktop power adapter.
And we will offer you the best after-sale service and timely delivery.

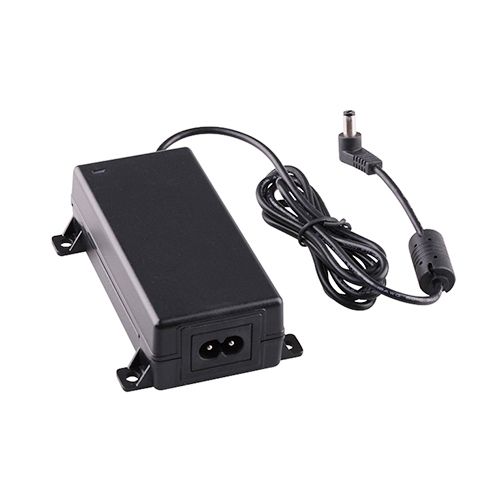

The STARWELL 60W desktop power supply is a dependable and efficient solution designed to provide power to your desktop devices. Manufactured by the reputable brand STARWELL, this power supply ensures reliable performance and long-lasting durability.
With certifications from UL, CE, FCC, RCM, KC, PSE, and UKCA, the power supply meets stringent international safety and quality standards. These certifications guarantee the protection of your devices and provide peace of mind during use.
Equipped with versatile output options, including 5V 8A, 9V 6A, 12V 5A, 24V 2.5A, and 48V 1.25A, the power supply is compatible with a wide range of devices such as smartphones, tablets, routers, and more. It delivers a stable and consistent power supply, ensuring optimal performance and efficient charging.
In addition to its reliable performance, the STARWELL 48W desktop power supply offers an affordable price point, making it a cost-effective choice for both personal and professional use.
Choose the STARWELL 60W desktop power supply for its exceptional quality, certifications, compatibility, and affordability. It is the ideal solution to power your desktop devices efficiently and reliably.
|
Item |
36-65W desktop Power Adapter |
|
|
Model |
SW-00xxxyyy-S10 |
|
|
INPUT |
100-240VAC 50/60Hz |
|
|
Output |
SEE MODEL LIST |
|
|
Features |
Ripple & Noise |
<120mV |
|
Energy star level |
Eup 2.0, Doe VI, CEC VI, CoC VI |
|
|
Efficiency |
>88% |
|
|
Installing |
Available for the system of Safety Class I/II |
|
|
Environment |
Operation Temp |
-10 ~ +65℃, 10 ~ 95% RH non-condensing |
|
Storage Temp |
-20 ~ +85℃ (Refer to "Derating Curve") |
|
|
Storage Humidity |
20 ~ 90% RH non-condensing |
|
|
Vibration |
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
|
|
Cooling Method |
by NTC (natural cooling) |
|
|
Safety&EMC |
Safety Standard |
UL 62368, ETL 62368, EN 62368, EN 61558, IEC60335, IEC60601 |
|
Safety Approvals |
UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more |
|
|
EMC Stardard |
EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020 EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020 |
|
|
MTBF |
5K hrs min. MIL-HDBK-217F (25℃) |
|
|
Machanicals |
DC Connectors |
USB-C, 5.5x2.1mm, 5.5x2.5mm, 4.0x1.7mm, 3.5x1.35mm and more available |
|
Dimension |
91.5x45x30mm (LxWxH) |
|
|
Packing |
140g; 100pcs/15.0Kg/0.056CBM |
|
MODEL LIST:
|
36W WALL FIXED POWER ADAPTER |
||||||
|
POWER |
MODEL |
INPUT |
OUTPUT |
OUTPUT |
Certificates |
inlet |
|
48W Series |
SW-0009040-S10 |
100-240VAC |
9V |
4.0A |
UL,CE,FCC, RCM,C-TICK, UKCA |
C8, C6, C14 or attached with ac cable |
|
SW-00120300-S10 |
12V |
3.0A |
||||
|
SW-00150240-S10 |
15V |
2.4A |
||||
|
SW-00240150-S10 |
24V |
1.5A |
||||
|
SW-00480075-S10 |
48V |
0.75A |
||||
|
48W DESKTOP POWER ADAPTER |
||||||
|
POWER |
MODEL |
INPUT |
OUTPUT |
OUTPUT |
Certificates |
inlet |
|
48W Series |
SW-0009050-S10 |
100-240VAC |
9V |
5.0A |
UL,CE,FCC, RCM,C-TICK, UKCA |
C8, C6, C14 or attached with ac cable |
|
SW-00120400-S10 |
12V |
4.0A |
||||
|
SW-00150300-S10 |
15V |
3.0A |
||||
|
SW-00240200-S10 |
24V |
2.0A |
||||
|
SW-00480100-S10 |
48V |
1.0A |
||||
|
65W DESKTOP POWER ADAPTER |
||||||
|
POWER |
MODEL |
INPUT |
OUTPUT |
OUTPUT |
Certificates |
inlet |
|
65W Series |
SW-00090600-S10 |
100-240VAC |
9V |
6.0A |
UL,CE,FCC, RCM,C-TICK, UKCA |
C8, C6, C14 or attached with ac cable |
|
SW-00120500-S10 |
12V |
5.0A |
||||
|
SW-00150400-S10 |
15V |
4.0A |
||||
|
SW-00240250-S10 |
24V |
2.5A |
||||
|
SW-00480133-S10 |
48V |
1.33A |
||||

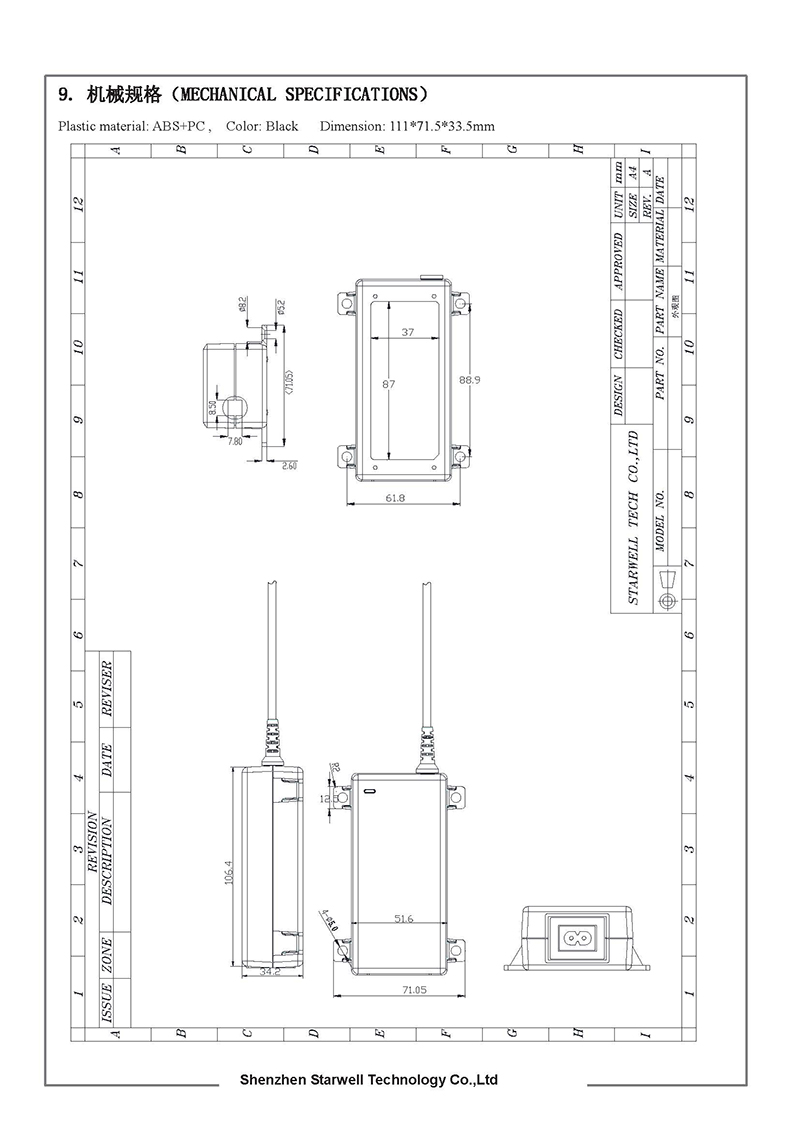

DRAWING:
