STARWELL is one of China manufacturers & suppliers who mainly produces 24W desktop power adapter with many years of experience.
Hope to build business relationship with you.
Product Specifications:
Power Output: 24W
Manufacturer: STARWELL
Certifications: The power supply holds the following certifications, ensuring compliance with international safety standards:
UL: Underwriters Laboratories (United States)
CE: Conformité Européene (European Union)
FCC: Federal Communications Commission (United States)
RCM: Regulatory Compliance Mark (Australia and New Zealand)
KC: Korea Certification (South Korea)
PSE: Product Safety Electrical Appliance and Material (Japan)
UKCA: UK Conformity Assessed (United Kingdom)
Voltage and Current Options:
The power supply offers versatile output options to meet different device requirements. Here are the available options:
5V4A: 5 Volts, 4 Amps
9V3A: 9 Volts, 3 Amps
12V2A: 12 Volts, 2 Amps
24V1A: 24 Volts, 1 Amp
48V0.5A: 48 Volts, 0.5 Amps
Product Features:
Quality and Reliability: The STARWELL 24W desktop power supply is manufactured by STARWELL, ensuring quality and reliability in its performance.
Safety Certifications: With UL, CE, FCC, RCM, KC, PSE, and UKCA certifications, the power supply meets international safety standards, providing peace of mind.
Affordable Price: The power supply offers an affordable price point, making it a cost-effective choice for various applications.
Versatile Compatibility: The power supply is compatible with a wide range of electronic devices that require the specified voltage and current options.
Please note that specific pricing, availability, and customization options can vary depending on the supplier or distributor you choose to work with. It‘s recommended to reach out to relevant wholesalers or manufacturers specializing in power supplies to get accurate pricing and availability information.
|
Item |
12-24W wall fixed Power Adapter |
|
|
Model |
SW-00xxxyyy-S10 |
|
|
Output range |
"xxx" can be 050 to 480 which represent output voltage from 9V to 48V in step on 0.1V "yyyy" can be 0010 to 200 which represent output current from 0.1A to 2.0A in step on 0.01A Output power: 180W max z = A to Z or blank for marketing purpose, no safety concern. |
|
|
INPUT |
100-240VAC 50/60Hz |
|
|
Output |
SEE MODEL LIST |
|
|
Features |
Ripple & Noise |
<120mV |
|
Energy star level |
Eup 2.0, Doe VI, CEC VI, CoC VI |
|
|
Efficiency |
>88% |
|
|
Installing |
Available for the system of Safety Class I/II |
|
|
Environment |
Operation Temp |
-10 ~ +65℃, 10 ~ 95% RH non-condensing |
|
Storage Temp |
-20 ~ +85℃ (Refer to "Derating Curve") |
|
|
Storage Humidity |
20 ~ 90% RH non-condensing |
|
|
Vibration |
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
|
|
Cooling Method |
by NTC (natural cooling) |
|
|
Safety&EMC |
Safety Standard |
UL 62368, ETL 62368, EN 62368, EN 61558 |
|
Safety Approvals |
UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more |
|
|
EMC Stardard |
EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020 EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020 |
|
|
MTBF |
5K hrs min. MIL-HDBK-217F (25℃) |
|
|
Machanicals |
DC Connectors |
USB-C, 5.5x2.1mm, 5.5x2.5mm, 4.0x1.7mm, 3.5x1.35mm and more available |
|
Dimension |
73.8*49.5*27mm (LxWxH) |
|
|
Packing |
300g; 36pcs/10.8Kg/0.056CBM |
|
MODEL LIST:
|
12W Wall fixed POWER ADAPTER |
||||||
|
POWER |
MODEL |
INPUT |
OUTPUT |
OUTPUT |
Certificates |
inlet |
|
12W Series |
SW-050200-S10 |
100-240VAC |
5.0V |
2.0A |
UL,CE,FCC, RCM,C-TICK, UKCA |
Attached with AC cable |
|
SW-090130-S10 |
9.0V |
1.3A |
||||
|
SW-120100-S10 |
12V |
1.0A |
||||
|
SW-150080-S10 |
15V |
0.8A |
||||
|
SW-240050-S10 |
24V |
0.5A |
||||
|
SW-480025-S10 |
48V |
0.25A |
||||
|
24W WALL FIXED DESKTOP POWER ADAPTER |
||||||
|
POWER |
MODEL |
INPUT |
OUTPUT |
OUTPUT |
Certificates |
inlet |
|
24W Series |
SW-050300-S10 |
100-240VAC |
5V |
3.0A |
UL,CE,FCC, RCM,C-TICK, UKCA |
Attached with AC cable |
|
SW-120150-S10 |
12V |
1.5A |
||||
|
SW-120200-S10 |
12V |
2.0A |
||||
|
SW-150160-S10 |
15V |
1.6A |
||||
|
SW-240100-S10 |
24V |
1.0A |
||||
|
SW-480050-S10 |
48V |
0.5A |
||||

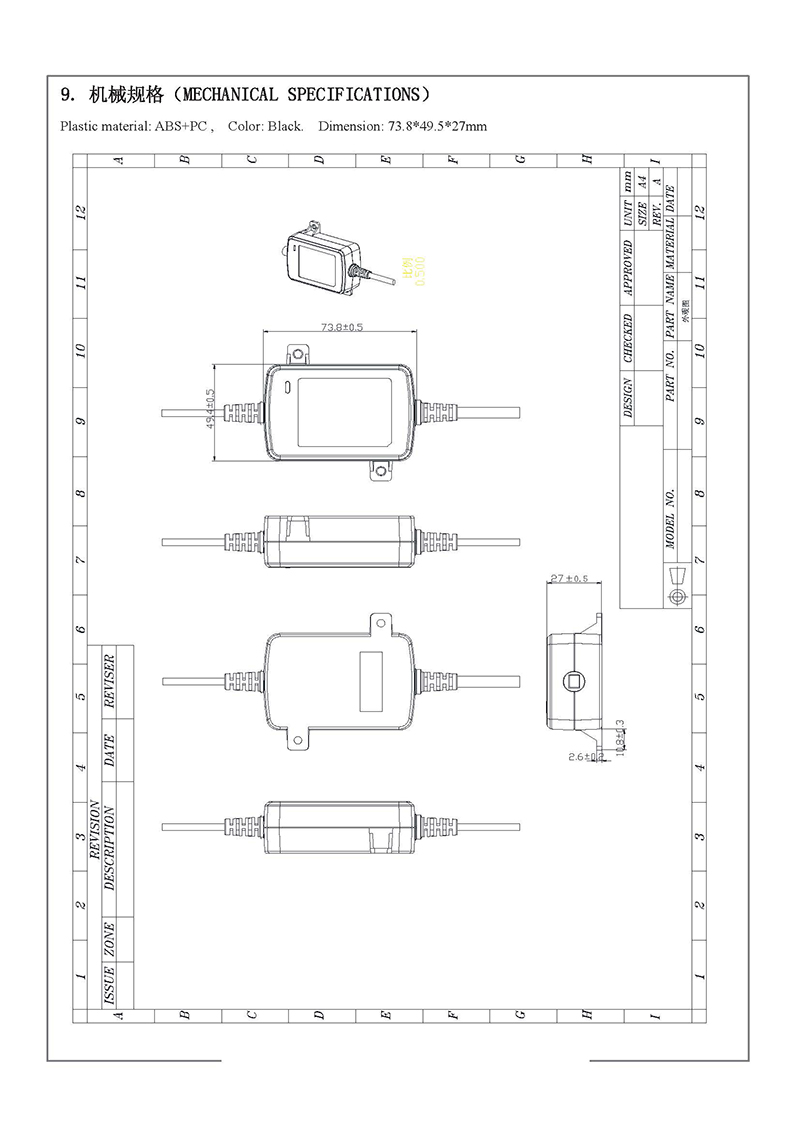

DRAWING：
