SPECIFICATION:
Item |
24W universal power adapter |
|
Model |
SK02G-xxxyyyyw |
|
Output range |
"xxx" can be 050 to 480 which represent output voltage from 5V to 48V in step on 0.1V "yyyy" can be 0010 to 0500 which represent output current from 0.1A to 6.0A in step on 0.01A "w" can be EU, US, CN, JP, BS, AU, KR or Z, EU denote European plug, US denote American plug, CN denote China plug, JP denote Japan plug, BS denote UK plug, AU denote Australia plug, KR denote Korea plug, Z denote replaceable plug |
|
INPUT |
100-240VAC 50/60Hz |
|
Output |
SEE MODEL LIST |
|
Features |
Ripple & Noise |
<120mV |
Energy star level |
Eup 2.0, Doe VI, CEC VI, CoC VI |
|
Efficiency |
>88% |
|
Installing |
Available for the system of Safety Class I/II |
|
Environment |
Operation Temp |
-10 ~ +65℃, 10 ~ 95% RH non-condensing |
Storage Temp |
-20 ~ +85℃ (Refer to "Derating Curve") |
|
Storage Humidity |
20 ~ 90% RH non-condensing |
|
Vibration |
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
|
Cooling Method |
by NTC (natural cooling) |
|
Safety&EMC |
Safety Standard |
UL 62368, ETL 62368, EN 62368, EN 61558 |
Safety Approvals |
UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more |
|
EMC Stardard |
EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020 EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020 |
|
MTBF |
5K hrs min. MIL-HDBK-217F (25℃) |
|
Machanicals |
DC Connectors |
USB-C, 5.5x2.1mm, 5.5x2.5mm, 4.0x1.7mm, 3.5x1.35mm and more available |
Dimension |
75.0x40.5x38.5mm (LxWxH) |
|
Packing |
145g; 54pcs/14.5Kg/0.056CBM |
MODEL LIST:
24W INTERCHANGEABLE POWER ADAPTER |
||||||
POWER |
MODEL |
INPUT |
OUTPUT |
OUTPUT |
Certificates |
PLUG |
24W Series |
SK03G-0500400Z |
100-240VAC |
5V |
4.0A |
UL,CE,FCC, RCM,C-TICK, UKCA |
interchangeable |
SK03G-0900250Z |
9V |
2.5A |
||||
SK03G-1200200Z |
12V |
2.0A |
||||
SK03G-1800133Z |
18V |
1.33A |
||||
SK03G-2400100Z |
24V |
1.0A |
||||
SK03G-3600066Z |
36V |
0.66A |
||||
SK03G-4800050Z |
48V |
0.5A |

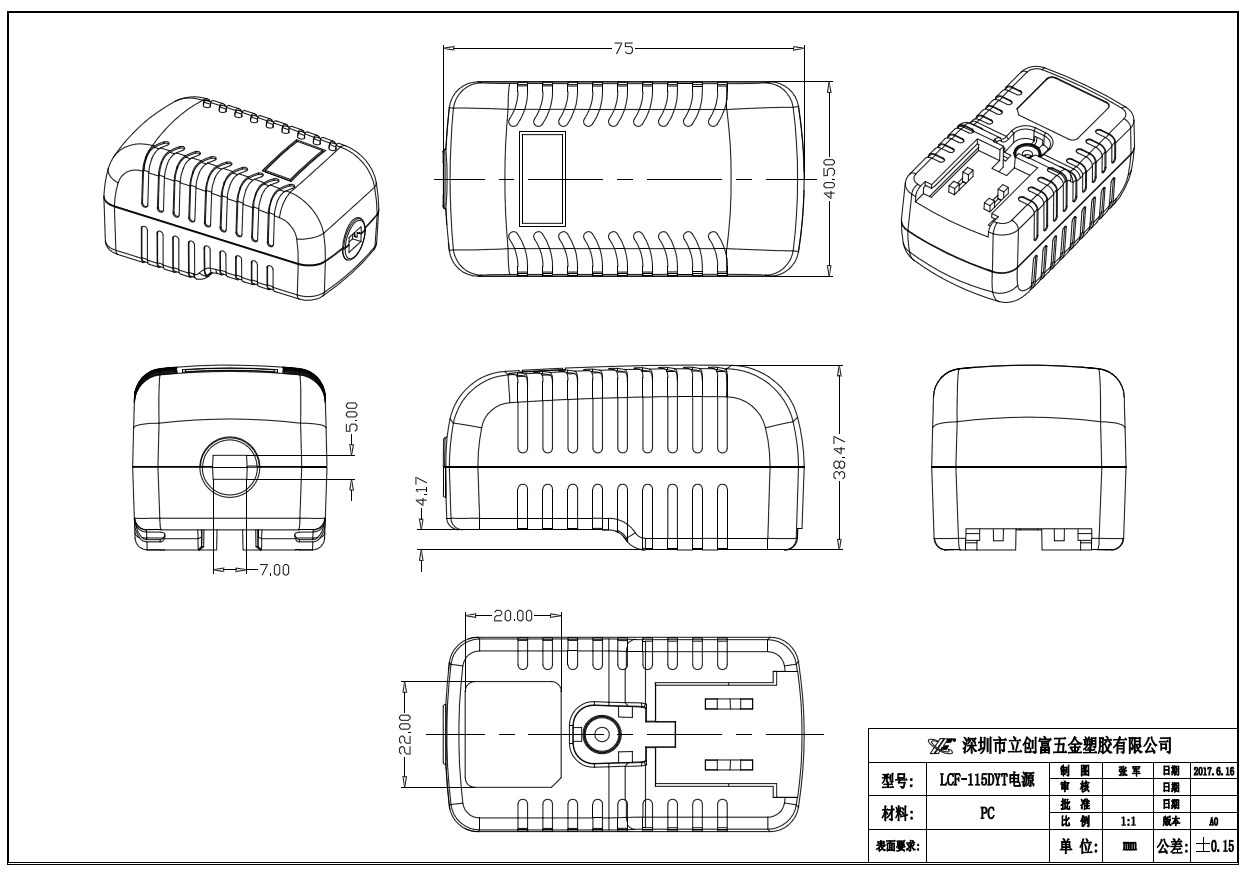

DRAWING:
