Item

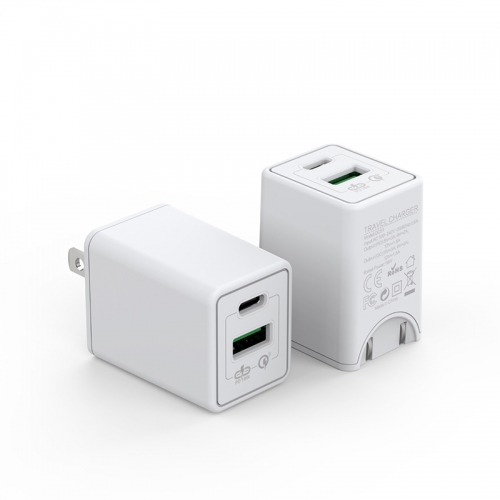

20W PD Charger

Model

QC51

Plug type

US / CN plug optional

INPUT

100-240VAC 50/60Hz

Port1: USB C

PD: 5V3A;9V2.22A;12V1.65A

Output

Port2: USB A

QC3.0: 5V3A;9V2A;12V1.5A

Features

Ripple & Noise

<120mV

Energy star level

Eup 2.0, Doe VI, CEC VI, CoC VI

Efficiency

>88%

Installing

Available for the system of Safety Class I/II

Environment

Operation Temp

-10 ~ +65℃, 10 ~ 95% RH non-condensing

Storage Temp

-20 ~ +85℃ (Refer to "Derating Curve")

Storage Humidity

20 ~ 90% RH non-condensing

Vibration

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

Cooling Method

by NTC (natural cooling)

Safety&EMC

Safety Standard

UL 62368, ETL 62368, EN 62368, EN 61558

Safety Approvals

UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more
information, please contact us.

EMC Stardard

EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020

MTBF

50K hrs min. MIL-HDBK-217F (25℃)

Dimension

 45.8*30*35.8mm (LxWxH)

Packing

100g; 100pcs/12.0Kg/0.056CBM
