TYPEC/PD charger

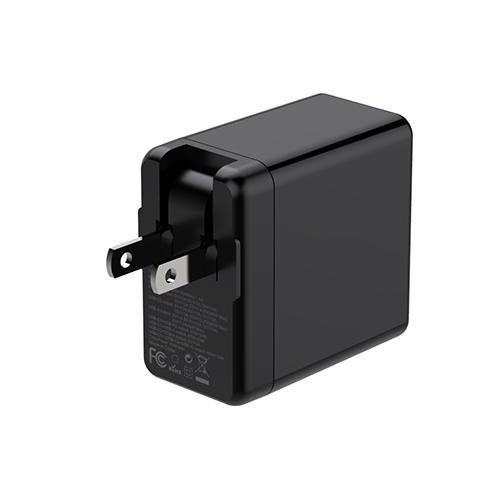

65W PD charger

█  Features:

 Universal input: 100-240VAC 50-60Hz

 Output power up to 65 Watts

 Plug type: US/EU/UK plug optional

 USB port: USB C port+ USB C port+ USB A port output

 Output 1: PD 5V/3A,9V/3A,12V/3A,15V/3A,20V/3.25A (65W max)

 Outpu 2: PD 5V/3A,9V/3A,12V/3A,15V/3A,20V/3.25A (65W max)

 Output 3: PD 5V3A 9V3A 15V3A 20V3A 60W MAX

 High efficiency, long life span, and high reliability

 Warranty: 3 years

 Certificate: FCC CE RoHS

    Title: 65W Gan PD charger UK plug USB C fast charger 5V3A 9V3A 12V3A 15V3A 20V3.25A type c quick mobile charger

    High Power Output: The STARWELL 65W PD Quick Charger delivers a remarkable 65W of power, making it capable of charging a wide range of devices, including smartphones, tablets, laptops, and more. With its high power output, you can rapidly charge multiple devices simultaneously.

    GaN Technology: Built with gallium nitride (GaN) technology, this charger offers increased energy efficiency and faster charging speeds compared to traditional chargers. GaN allows for a more compact design without compromising performance, making it ideal for travel and everyday use.

    Compact and Portable: The charger features a compact and lightweight design, making it easy to carry in your bag or pocket. Whether you‘re traveling, working, or on-the-go, the portable nature of the charger ensures that you can conveniently charge your devices whenever and wherever needed.

    Superior Quality and Safety: STARWELL takes pride in its commitment to producing high-quality products. Our 65W PD Quick Charger undergoes rigorous testing to ensure its reliability and safety. It incorporates advanced safety features such as overcurrent protection, overvoltage protection, and temperature control to safeguard your devices during the charging process.

    As a leading brand, STARWELL combines advanced GaN technology and our expertise in our own factory to provide you with a powerful, efficient, and reliable charging solution. Trust STARWELL for superior performance and stay powered up with our 65W PD Quick Charger.






    Item

    65W GAN PD Charger

    Model

    QC83

    Plug type

    US / EU / UK plug optional

    INPUT

    100-240VAC 50/60Hz

    Output

    Port1: USB C

    PD: 5V/3A,9V/3A,12V/3A,15V/3A,20V/3.25A (65W max)

    Port2: USB C

    PD: 5V/3A,9V/3A,12V/3A,15V/3A,20V/3.25A (65W max)

    Port3: USB A

    PD: 5V3A 9V3A 15V3A 20V3A 60W MAX





    Features

    Ripple & Noise

    <120mV

    Energy star level

    Eup 2.0, Doe VI, CEC VI, CoC VI

    Efficiency

    >88%

    Installing

    Available for the system of Safety Class I/II

    Environment

    Operation Temp

    -10 ~ +65, 10 ~ 95% RH non-condensing

    Storage Temp

    -20 ~ +85 (Refer to "Derating Curve")

    Storage Humidity

    20 ~ 90% RH non-condensing

    Vibration

    10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

    Cooling Method

    by NTC (natural cooling)

    Safety&EMC

    Safety Standard

    UL 62368, ETL 62368, EN 62368, EN 61558

    Safety Approvals

    UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more
    information, please contact us.

    EMC Stardard

    EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020

    MTBF

    50K hrs min. MIL-HDBK-217F (25)

    Dimension

     60*58*30mm (LxWxH) exclude plug

    Packing

    100g; 100pcs/12.0Kg/0.056CBM
