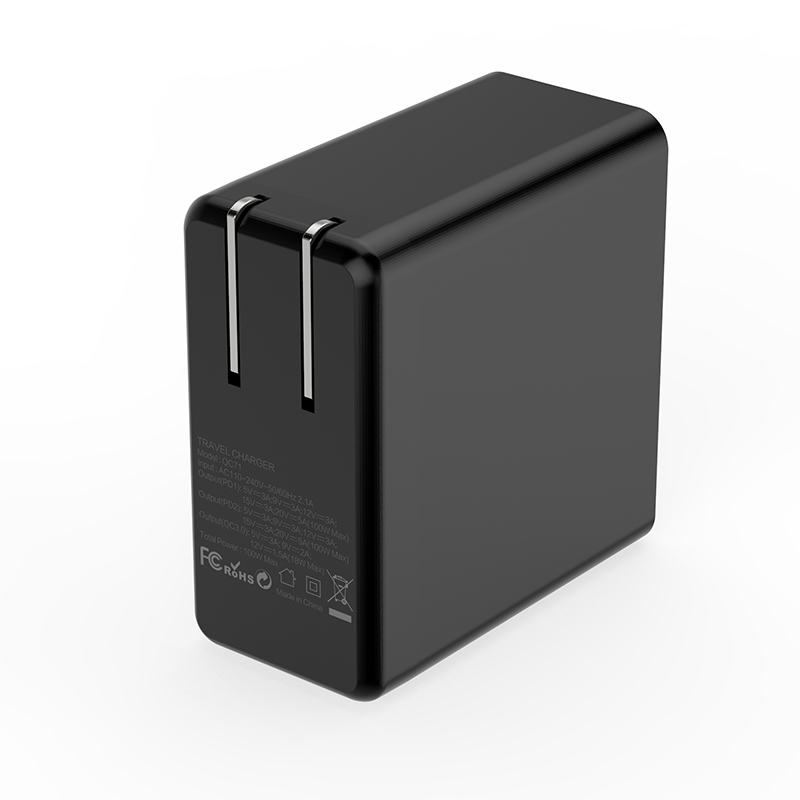

STARWELL Fast 100W PD Quick Charger advantage:
STARWELL are a manufacturer of 100W PD chargers, and we would like to introduce the performance specifications of our product:
● Output 1: PD 5V3A/9V3A/12V3A/15V3A/20V5A (100W max) PPS (3.3-20V5A)
● Output 2: PD 5V3A/9V3A/12V3A/15V3A/20V5A (100W max) PPS (3.3-20V5A)
● Output 3: QC3.0: 5V3A/9V2A/12V1.5A (18W max)
Our chargers offer multiple outputs to cater to different charging requirements. Output 1 and Output 2 support Power Delivery (PD) technology, providing a wide range of voltage and current options for efficient charging of various devices, including smartphones, tablets, and laptops. They can deliver up to 100W of power and are compatible with PPS (Programmable Power Supply) technology for further flexibility.
Output 3 is equipped with Quick Charge 3.0 (QC3.0) technology, which enables fast charging at 18W for compatible devices.
With our 100W PD chargers, you can enjoy reliable, high-performance charging solutions that meet the demands of modern devices.
100W PD Quick Charger Specification:
| Item | 100W PD Quick Charger, fast charger, usb wall charger | |
| Model | QC71 | |
| Plug type | US / EU / UK / US foldable plug optional | |
| INPUT | 100-240VAC 50/60Hz | |
| Output | Port1: USB C | PD: 5V3A/9V3A/12V3A/15V3A/20V5A(100W max) PPS 3.3-20V5A |
| Port2: USB C | PD: 5V3A/9V3A/12V3A/15V3A/20V5A(100W max) PPS 3.3-20V5A | |
| Port3: USB A | QC3.0: 5V3A/9V2A/12V1.5A(18W max) | |
| Features | Ripple & Noise | <120mV |
| Energy star level | Eup 2.0, Doe VI, CEC VI, CoC VI | |
| Efficiency | >88% | |
| Installing | Available for the system of Safety Class I/II | |
| Environment | Operation Temp | -10 ~ +65℃, 10 ~ 95% RH non-condensing |
| Storage Temp | -20 ~ +85℃ (Refer to "Derating Curve") | |
| Storage Humidity | 20 ~ 90% RH non-condensing | |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| Cooling Method | by NTC (natural cooling) | |
| Safety&EMC | Safety Standard | UL 62368, ETL 62368, EN 62368, EN 61558 |
| Safety Approvals | UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more information, please contact us. |
|
| EMC Stardard | EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020 | |
| MTBF | 50K hrs min. MIL-HDBK-217F (25℃) | |
| Dimension | 66*66*35mm (LxWxH) exclude plug | |
| Packing | 150g; 50pcs/9.0Kg/0.056CBM | |
| Application | usage | Mobile Phone, LAPTOP, Game Player, Camera, Universal , Electric Tool, Home Security System, Household Electrical Appliances, Motorcycle / Scooter, Earphone, Medical Devices, MP3 / MP4 Player, Tablet, Industrial, Smart Watch, iphone, Samsung mobile phone, laptop charger |
| Advantage | USB Charger with Full speed as the mobile phone or other USB equipment required,Compatible with Type-C and provides standard charging for non-Quick Charge devices | |
|
Item |
100W GAN PD Charger |
|
|
Model |
QC71 |
|
|
Plug type |
US / EU / UK plug optional |
|
|
INPUT |
100-240VAC 50/60Hz |
|
|
Output |
Port1: USB C |
PD: 5V3A/9V3A/12V3A/15V3A/20V5A(100W max) |
|
Port2: USB C |
PD: 5V3A/9V3A/12V3A/15V3A/20V5A(100W max) |
|
|
Port3: USB A |
QC3.0: 5V3A/9V2A/12V1.5A(18W max) |
|
|
Features |
Ripple & Noise |
<120mV |
|
Energy star level |
Eup 2.0, Doe VI, CEC VI, CoC VI |
|
|
Efficiency |
>88% |
|
|
Installing |
Available for the system of Safety Class I/II |
|
|
Environment |
Operation Temp |
-10 ~ +65℃, 10 ~ 95% RH non-condensing |
|
Storage Temp |
-20 ~ +85℃ (Refer to "Derating Curve") |
|
|
Storage Humidity |
20 ~ 90% RH non-condensing |
|
|
Vibration |
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
|
|
Cooling Method |
by NTC (natural cooling) |
|
|
Safety&EMC |
Safety Standard |
UL 62368, ETL 62368, EN 62368, EN 61558 |
|
Safety Approvals |
UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more |
|
|
EMC Stardard |
EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020 |
|
|
MTBF |
50K hrs min. MIL-HDBK-217F (25℃) |
|
|
Dimension |
60*58*30mm (LxWxH) exclude plug |
|
|
Packing |
100g; 100pcs/12.0Kg/0.056CBM |
|
