TYPEC/PD charger

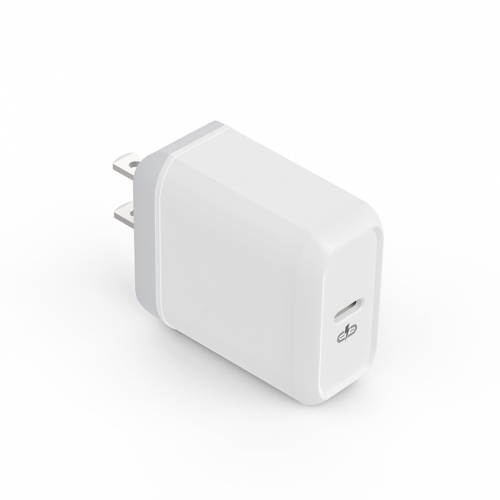

18W PD charger

█  Features:

 Universal input: 100-240VAC 50-60Hz

 Output power up to 18Watts

 Plug type: US/EU/UK plug optional

 USB port: USB C port output

 Output USB C1: PD 5V/3A;9V/2A/;12V/1.5A

 High efficiency, long life span, and high reliability

 Warranty: 3 years

 Certificate: FCC CE RoHS

    Title: 18W charger Single/Dual Port Type C Wall GaN PD Fast 18w Charger

    18W PD Quick Charger Produced by STARWELL, a Chinese powerhouse in manufacturing, with high-quality at affordable prices.

    High-Speed Charging: The STARWELL 18W PD Quick Charger boasts a powerful output of 1 watts, ensuring rapid charging for your devices. Say goodbye to long charging times and enjoy quick power-ups.

    Universal Compatibility: Our pd charger is equipped with Power Delivery (PD) technology, making it compatible with a wide range of devices, including smartphones, tablets, and even certain laptops. It‘s the ultimate charging solution for all your gadgets.

    Compact and Portable: We understand the importance of convenience, so we‘ve designed our charger to be compact and lightweight. It easily fits into your bag or pocket, allowing you to take it anywhere you go. Never be without power again!

    Advanced Safety Features: Your safety is our top priority. The STARWELL 18W PD Quick Charger incorporates multiple safety mechanisms, such as overcurrent protection, overvoltage protection, and short-circuit protection. You can charge your devices with peace of mind.

    Durable and Long-Lasting: Built with high-quality materials, our charger is built to withstand daily use and is highly durable. It‘s designed to last for a long time, providing reliable charging performance day in and day out.






    Item

    18W PD Charger

    Model

    QC44

    Plug type

    US / EU / UK / India plug optional

    INPUT

    100-240VAC 50/60Hz

    Output

    Port1: USB C

    PD: 5V/3A;9V/2A/;12V/1.5A





    Features

    Ripple & Noise

    <120mV

    Energy star level

    Eup 2.0, Doe VI, CEC VI, CoC VI

    Efficiency

    >88%

    Installing

    Available for the system of Safety Class I/II

    Environment

    Operation Temp

    -10 ~ +65, 10 ~ 95% RH non-condensing

    Storage Temp

    -20 ~ +85 (Refer to "Derating Curve")

    Storage Humidity

    20 ~ 90% RH non-condensing

    Vibration

    10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

    Cooling Method

    by NTC (natural cooling)

    Safety&EMC

    Safety Standard

    UL 62368, ETL 62368, EN 62368, EN 61558

    Safety Approvals

    UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more
    information, please contact us.

    EMC Stardard

    EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020

    MTBF

    50K hrs min. MIL-HDBK-217F (25)

    Dimension

     67*44.5*25.6mm (LxWxH)

    Packing

    100g; 100pcs/12.0Kg/0.056CBM
