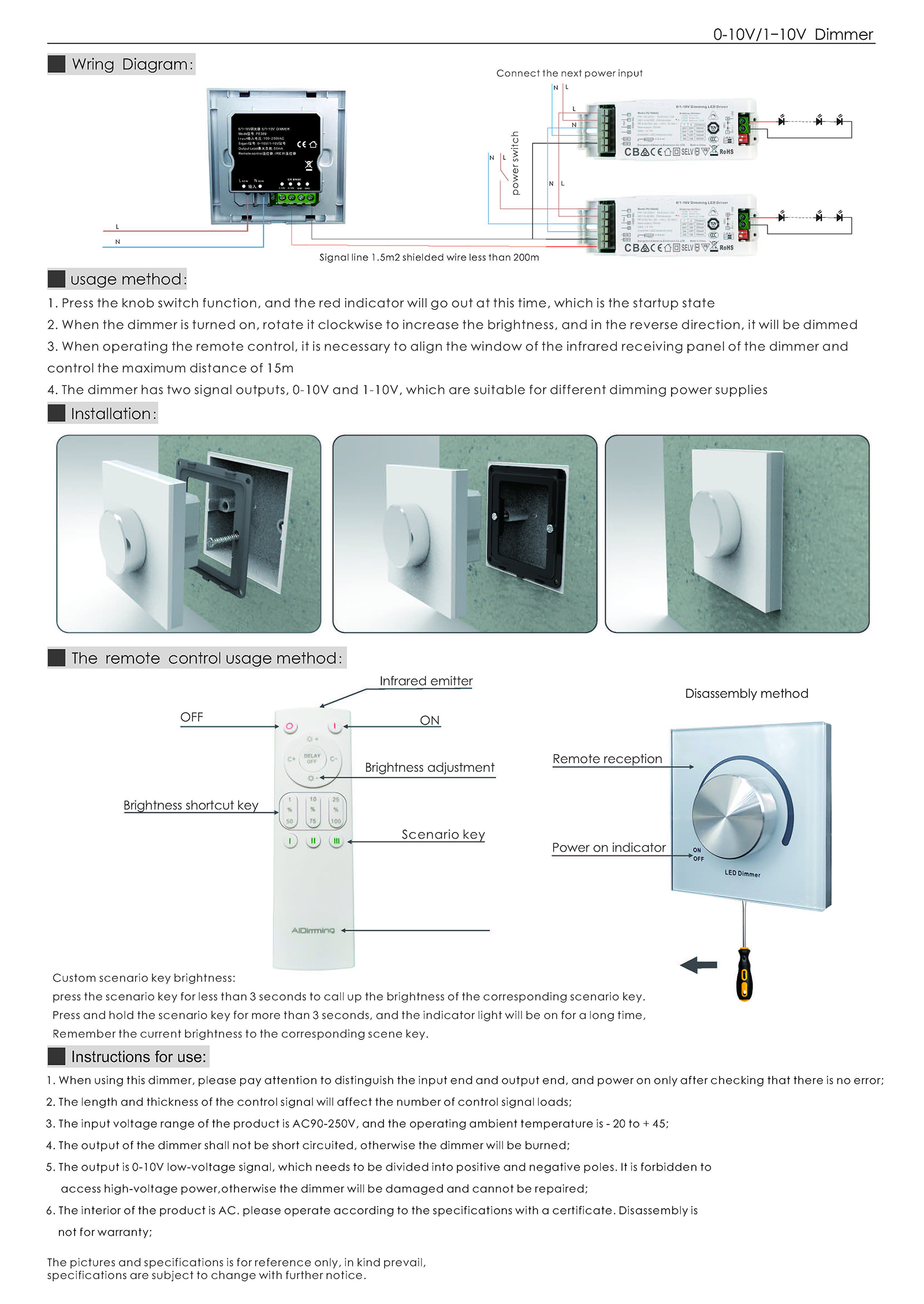

Instructions for use:

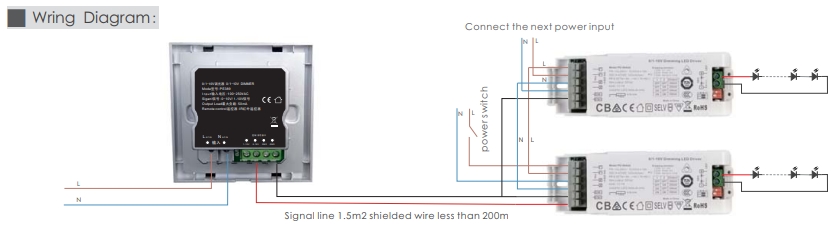

1. When using this dimmer, please pay attention to distinguish the input end and output end, and power on only after checking that there is no error;

2.The length and thickness of the control signal will affect the number of control signal loads;

3.The input voltage range of the product is AC90-250v, and the operating ambient temperature is-20 to + 45;

4.The output of the dimmer shall not be short circuited, otherwise the dimmer will be burned;

5.The output is 0-10v low-voltage signal, which needs to be divided into positive and negative poles. It is forbidden to

access high-voltage power,otherwise the dimmer will be damaged and cannot be repaired;

6.The interior of the product is AC. please operate according to the specifications with a certificate. Disassembly is

not for warranty;

The pictures and specifications is for reference only, in kind prevail

specifications are subject to change with further notice.
