POWER INVERTER

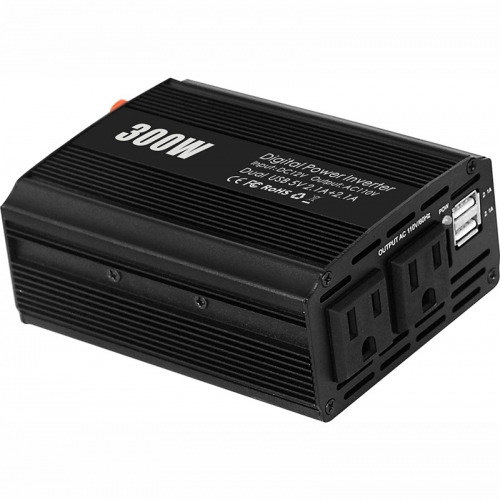

300W power inverter

█  Features:

Input: 12V or 24V DC

Output power: 300W

● Wave form: MODIFIED SINE WAVE

Output: 110/120VAC or 220/230/240VAC optional

● 2xUSB port 2.1A + 2.1A output

● 2xSocket: US/EU/universal socket optional

    Technical parameter



    直流输入电压/ Input Voltage DC

    DC12V(10.5-15V)

    交流输出电压/ Output Voltage AC

    AC110V±10% or AC220V±10% optional

    持续输出功率/Continuous POWER

    300W

    过载保护/Over Load protection

    300W(自动恢复2次机会后锁死)

    峰值输出功率/Peak power

    600W

    输出波形/Output Wave

    修正弦波/ SOFT START MODIFIED SINE WAVE

    输出频率/Output Frequency

    50Hz or 60Hz±2Hz

    有效输出功率/Efficiency

    ≥87%

    空载电流/Standby No Load Current

    0.6A±0.1A

    低压保护电压/Low Voltage Protection

    10±0.5V

    低压关断锁死后自动恢复电压/Low voltage Auto recovery

    12.5±0.5V

    高压保护电压电压/Over Voltage protection

    15.5±0.5V

    高压关断锁死后自动恢复电压/Over voltage  Auto recovery

    14.5±0.5V

    保险丝/FUSE

    1*40A

    过热保护/OVER Heat protection

    60(两次机会后锁死,<45°自动恢复工作。)

    冷却风扇/Cool TYPE

    YES,(控制1个对流风扇)

    短路保护/Short circuit Protection

    Yes  (两次机会后锁死)

    防反接保护/ opposite connection protection

    YES

    USB输出电压/USB OUTPUT Voltage

    4.8-5.25V

    intelligent ICD+2.7±0.2V/ D-2.7±0.2V

    intelligent ICD+2.7±0.2V /D-2.7±0.2V

    USB输出电流/USB output Current

    2.1A+2.1A ( share 4.2A)

    USB输出过载保护电流/USB Over Load Protection

    YES(<5.1A

    USB输出短路/USB short circuit protection

    YES(开机能恢复输出)

    USB输出反向电流/USB reverse current

    YES(关机时,在USB输出端接4.2V电压,电流小于5MA



    产品尺寸/size

    124*95*55mm(L*W*H)/铝壳

    包装方式/packing type

    彩盒/color box

    数量/(QTY/carton)

    30PCS

    单重(KG/PCS)

    0.56KG含包装

    净重/(N.W)

    16.8KG

    毛重/(G.W)

    17.7KG

    外箱尺寸(Dimension)

    51*32*32.5CM

    产品配件(accessories)

    说明书 / USERMANUAL
