墙插式POE电源

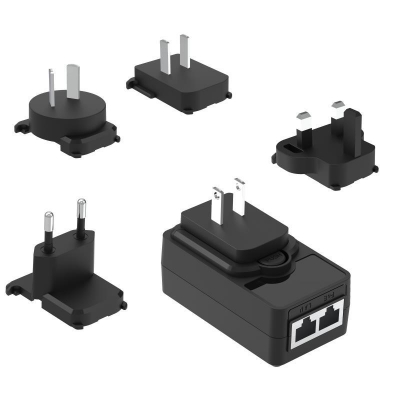

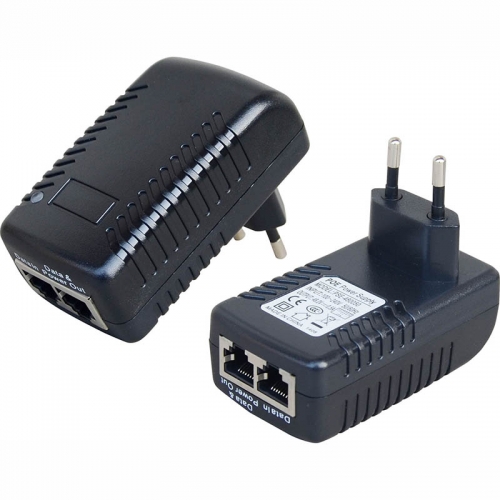

24W系列POE电源适配器

█  Features:

●24W series wallmounted POE power adapter

●input: 100-240VAC

●output: see below model list

●Plug typpe: US/CN/EU/UK/AUS plug optional

●Certificates: UL, CE, FCC, TUV, UKCA

●Color: black or white  optional.

●DC PORT: 2*RJ45 : Port 1: LAN, Port 2: POE

●Protocol type: Passive POE or Active POE optional

●POE pin: 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 1,2,4,5(+) 3,6,7,8(-) both

●Protocol: Compatible with IEE802.3af/IEEE802.3at

●Data Speed: 10/100/1000M/2.5G/5G/10 bps ( optional )

●size: 84*46.9*31.7mm(exclude plug)

    Item

    5W 12W 18W 24W POE Power Adapter

    Model

    PSE-xxxyyyw

    INPUT

    100-240VAC 50/60Hz

    Output

    12V

    15V

    18V

    24V

    48V

    56V

    0-2A

    0-1.6A

    0-1.33A

    0-1.0A

    0-5A

    0.4A





    Features

    Ripple & Noise

    <120mV

    Energy star level

    Eup 2.0, Doe VI, CEC VI, CoC VI

    Efficiency

    >88%

    Installing

    Available for the system of Safety Class I/II

    Environment

    Operation Temp

    -10 ~ +65, 10 ~ 95% RH non-condensing

    Storage Temp

    -20 ~ +85 (Refer to "Derating Curve")

    Storage Humidity

    20 ~ 90% RH non-condensing

    Vibration

    10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

    Cooling Method

    by NTC (natural cooling)

    Safety&EMC

    Safety Standard

    UL 62368, ETL 62368, EN 62368, EN 61558

    Safety Approvals

    UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more
    information, please contact us.

    EMC Stardard

    EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020

    MTBF

    5K hrs min. MIL-HDBK-217F (25)

     POE funciton

    Protocol

    Compatible with IEE802.3af/IEEE802.3at

    Protocol type

    Passive POE  /  Active POE  (optional)

    POE pin

    4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan or 1245+ 3678-

    Data Speed

    10/100/1000M/2.5G bps ( optional )

    Machanicals

    DC PORT

    2*RJ45 :10/100/1000Mbps, Port 1: LAN, Port 2: POE

    Dimension

     84x46.99x37.1mm (LxWxH) exclude plug

    Packing

    100g; 100pcs/12.0Kg/0.056CBM
