恒压驱动电源

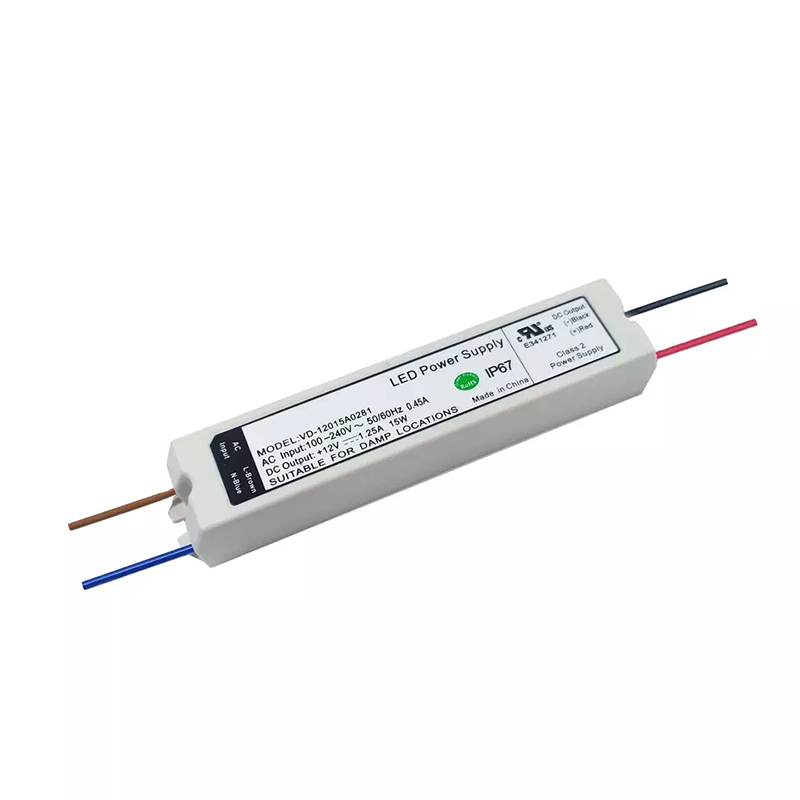

15W 恒压防水电源

Short Description:

Brand: STARWELL
Input Voltage: 100-240V
Output Voltage: 12V / 24V
Output Current: 1.25A / 0.625A
Working Mode: Constant Voltage
Typical efficiency: 83.5%
Size: 155*27.5*24.5MM
Certification: CE(LVD) ,EMC, UL, ROHS , IP67

    Specifications

    Item No

    VD-12015A0281

    VD-24015A0281

    VDC-12015A0283

    VDC-24015A0283

    Output Voltage

    12V

    24V

    12V

    24V

    Output Current

    1.25A

    0.625A

    1.25A

    0.625A

    Rated power

    15W

    Input Voltage

    100-240V AC

    Certificate

    CE, Rohs, UL, Class2

    CE, EMC, CB, ROHS

    Efficiency Typ.)

    81.00%

    82.00%

    81.50%

    83.50%

    Power factor

    PF≥0.5/110V(at full load) PF≥0.45/230V(at full load)

    Waterproof Rating

    IP67

    Warranty

    2/3/5/10 years

    Working temperature

    -25°C~+50°C

    Working humidity

    10%~90%RH, No Condensation

    Storage temperature and humidity

    -25°C~+75°C, 5%~95%RH

    Dimension

    155*27.5*24.5MM(L*W*H)

    Package

    0.2Kg/PCS, 50PCS/10Kg/box, (363X225X170mm)

    Features:

    Constant voltage style power supply
    Input voltage 100~240V
    Cooling by free air convection
    Fully encapsulated with IP67 level
    100% full load burn-in test
    Small volume, low weight and high efficiency
    Protections for short circuit, over load, over voltage and over temperature

    Applications

    *Office lighting, Artwork lighting, Display case

    *Home lighting

    *Commercial lighting, such as Down light, Underground lamp, Panel light, Spotlight, Wall washer, etc.

    *Hotel, Restaurant lighting

    *Other public lighting

    Advantages

    1,The first factory entered the waterproof LED Power Supply in China mainland;

    2,10 years focus on the LED Power Supply Research and development, Production;

    3,Serviced 2,500 customers, including 2000 in China mainland, 500 in overseas markets all over the world;

    4,High reliability and good stability, for many kinds of large-scale outdoor lighting project, through the use of test from 2500 customers;

    5,LED Power Supply is the heart of the LED lamps and transformers is the core component of LED Power Supply. For control the quality, we made the transformer by our own factory, this also for the power supply is stable and reliable;

    6,Complete certification, UL, SAA, EMC etc., Small factory often lack of this;

    7,Electrolytic capacitors and other components are made of giant brand, high-end products with Ruby etc.

    8,After-sale guaranteed, real integrity transactions, 1:1 replace the faulty item, but many small factory often irresponsible when face the quality problem, even precarious;

    9,Strictly process control, Power supply enter the door is low, but do well is not much, do not do well, even though the same techniques, the same material, do all the things we are not the same, because process control are not the same, Equipment is not the same;

    10,Strong r&d team, r&d team has more than 30 people;

    11,Flexible and fast delivery, bulk orders usually delivery within two weeks, General small batch orders can be arranged delivery within 3 days if have semi-finished products in stock;

    12,Compare with MeanWell, we have the advantages of ODM, OEM, quality unchanged and have competitive price.
