Item |

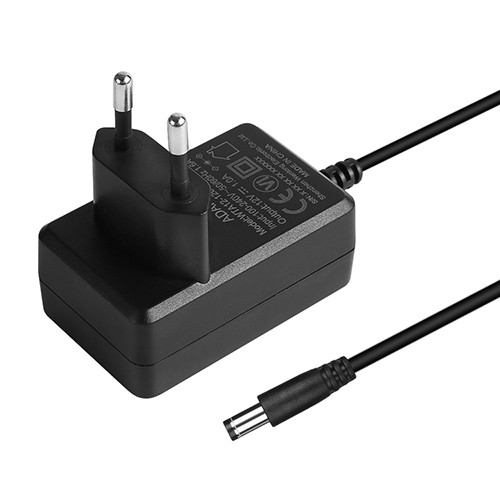

5W12W 18W EU wallmounted Power Adapter |
|
Model |
SW-01xxxyyy-S04EU |
|
INPUT |
100-240VAC 50/60Hz |
|
Output |
SEE MODEL LIST |
|
Features |
Ripple & Noise |
<120mV |
Energy star level |
Eup 2.0, Doe VI, CEC VI, CoC VI |
|
Efficiency |
>88% |
|
Installing |
Available for the system of Safety Class I/II |
|
Environment |
Operation Temp |
-10 ~ +65℃, 10 ~ 95% RH non-condensing |
Storage Temp |
-20 ~ +85℃ (Refer to "Derating Curve") |
|
Storage Humidity |
20 ~ 90% RH non-condensing |
|
Vibration |
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
|
Cooling Method |
by NTC (natural cooling) |
|
Safety&EMC |
Safety Standard |
UL 62368, ETL 62368, EN 62368, EN 61558 |
Safety Approvals |
UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more |
|
EMC Stardard |
EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020 EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020 |
|
MTBF |
5K hrs min. MIL-HDBK-217F (25℃) |
|
Machanicals |
DC Connectors |
USB-C, 5.5x2.1mm, 5.5x2.5mm, 4.0x1.7mm, 3.5x1.35mm and more available |
Dimension |
60x30x25mm (LxWxH) exclude plug |
|
Packing |
100g; 100pcs/12.0Kg/0.056CBM |
MODEL LIST:
5W EU POWER ADAPTER |
||||||
POWER |
MODEL |
INPUT |
OUTPUT |
OUTPUT |
Certificates |
PLUG |
5W Series |
SW-01050050-S04EU |
100-240VAC |
5V |
500mA |
CB CE |
EU |
SW-01050100-S04EU |
5V |
1.0A |
||||
SW-01050120-S04EU |
5V |
1.2A |
||||
SW-01090060-S04EU |
9V |
0.6A |
||||
SW-01120050-S04EU |
12V |
0.5A |
12w EU POWER ADAPTER |
||||||
POWER |
MODEL |
INPUT |
OUTPUT |
OUTPUT |
Certificates |
PLUG |
12W Series |
SW-01050240-S04EU |
100-240VAC |
5V |
2.4A |
CB CE |
EU |
SW-01060200-S04EU |
6V |
2A |
||||
SW-01090150-S04EU |
9V |
1.5A |
||||
SW-01120100-S04EU |
12V |
1A |
||||
SW-01150080-S04EU |
15V |
0.8A |
||||
SW-01240050-S04EU |
24V |
0.5A |
||||
18W Series |
SW-0105030-S04EU |
100-240VAC |
5V |
3.0A |
CB CE |
EU |
SW-01060300-S04EU |
6V |
3.0A |
||||
SW-01090200-S04EU |
9V |
2.0A |
||||
SW-01120150-S04EU |
12V |
1.5A |
||||
SW-01180100-S04EU |
18V |
1.0A |
||||
SW-01240750-S04EU |
24V |
0.75A |
